Open Access, Case Report, Volume 4, Issue 4

A novel type 1b pseudohypoparathyroidism gene mutation in an adult with dilated cardiomyopathy and massive pericardial effusion

Hernández-Martínez Claudia1; Garnica-Cuellar Juan Carlos1; Garduño-Pérez Ángel Alfonso1; Aceves-Chimal José Luis2; Montaño-Estrada Luis Felipe3*

1Department of Endocrinology, CMN “20th of November”, Institute for Social Security and Services for State Workers, México City 03229, Mexico.
2Coordination of Investigation, Institute for Social Security and Services for State Workers, México City 03229, Mexico.
3Department of Cellular and Tissular Biology, Laboratory of Immunobiology, Faculty of Medicine, UNAM, Mexico.

Montaño-Estrada Luis Felipe

Department of Cellular and Tissular Biology, Laboratory of Immunobiology, Faculty of Medicine, UNAM, Mexico.
Email: lfmontmx@yahoo.com

Received : Jul 27, 2024, Accepted : Aug 26, 2024
Published : Aug 30, 2024, Archived : www.jclinmedcasereports.com

Copy right Statement: Content published in the journal follows Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0). © Felipe MEL (2024).

Journal: The Journal of Clinical and Medical Images, Case Reports (JCMICR) is a fantastic resource for keeping up with the latest clinical advancements and for publishing case reports and clinical images related to a variety of medical illnesses.

Citation: Hernández-Martínez C, Garnica-Cuellar JC, Garduño-Pérez AA, Aceves-Chimal JL, Montaño-Estrada LF. A novel type 1b pseudohypoparathyroidism gene mutation in an adult with dilated cardiomyopathy and massive pericardial effusion. J Clin Med Images Case Rep. 2024; 4(4): 1729.
Introduction

Pseudohypoparathyroidism (PHP) is a medical condition that affects calcium-mediated myocardial membrane depolarization [1] and cardiac contractility. Hypocalcemic ventricular dysfunction secondary to parathyroid dysfunction is a rare event in adults [2] that responds promptly to restoration of normocalcemia. There are three types of PHP according to the specific alteration detected in the Paratohormone (PTH)-induced signaling pathways [3]; type 1 is further subdivided in subtypes 1a and 1c that affect the alpha-subunit of the stimulatory G protein leading to PTH-resistant hypocalcemia and hyperphosphatemia as well as resistance to other hormones [4] and subtype 1b which exhibit normal G-protein activity, rarely present resistance to other hormones [5] and is characterized by PTH resistance in the proximal renal tubules [6] with no other endocrine alteration and normal Gsa activity. Subtype 1b is caused by maternal mutations [7] at the GNAS locus [8] most frequently STX16 deletions that lead to loss of methylation restricted to GNAS exon A/B [4,9].

Pericardial effusions are cataloged as inflammatory and noninflammatory according to the cause [10]. Although hypocalcemia cardiomyopathy due to idiopathic hypoparathyroidism rarely leads to pericardial effusion [11], there is only one case reported with massive pericardial effusion [12].

We report a rare case of subtype 1b pseudohypoparathyroidism with massive pericardial effusion secondary to hypocalcemia due to a newly described mutation.

Case Presentation

A 43 year-old woman with a five-year history of cardiac insufficiency treated with ACE inhibitor, beta-blocker, mineralocorticoid receptor antagonist and diuretic. The week previous to hospital admission se developed a sudden severe grade III (NYHA) heart failure. The ECG showed sinus rhythm with right branch complete blockade, left auricular and right ventricular hyperthrophy (Figure 1). The transthoracic echocardiogram showed dilated ventricles, a 35% ventricular ejection fraction, and massive pericardial effusion with systolic and diastolic heart compression. Magnetic resonance demonstrated right auricle collapse secondary to the pericardial effusion and lobulated left pleural effusion (Figure 2). Angiotomography did not show significant lesions. Brain computed tomography showed hyperdense lesions in basal ganglia and a decrease in the cortico-subcortical region (Figure 3). An emergency open-heart pericardiectomy (8 mm thick pericardium), pericardial and pleural effusions drainage (400 ml and 1 lt, respectively) and left lung decortication were performed. Histopathology results confirmed chronic pericarditis with mesothelial cells hyperplasia.

The post-surgery evaluation of the patient showed severe hypocalcemia (5.4 mg/dl), hypomagnesemia (1.92 mg/dl) and hyperphosphatemia (7.1 mg/dl) as well as low levels of parathyroid hormone (< 3 pg/ml), and vitamin D (15 ng/dl) and elevated urine calcium values (368 mg/dl/24 h). A cranial tomography showed calcification of basal ganglia and the ECH showed a prolonged (535 ms) QT interval.

The most frequent causes of dilated myocardiopathy (autoimmune, infiltrative, infectious, neoplastic, ischemic) were considered in this patient but after exhaustive analysis and testing they were all eliminated so ventricular dysfunction secondary to hypocalcemia due to parathyroid dysfunction and/or pseudohypoparathyroidism, which are rare events in adults, were considered.

The result of a genetic analysis performed in a whole blood EDTA sample by NCGM, Inc. (Raleigh, NC, USA) showed a GNAS mutation in exon 1 (variant nomenclature: c.119_1120insA (p.Pro374ThrfsTer603) that was interpreted as a “heterozygous likely probably pathogenic variant consistent with phenotype detected”. Calcium and magnesium supplementation therapy was initiated, and transthoracic echocardiography performed 3 weeks after showed a 45% ventricular ejection fraction value, an improved ventricular contraction, absence of pleural or pericardial effusions, and a grade II NYHA value.

 Image is Not Display Check It
Figure 1: Cardiac magnetic resonance imaging showing cardiac chamber diameter and wall thickness within normal parameters, left ventricular systolic dysfunction, LVEF 38%, poor basal anterior intramyocardial (non-ischemic) late enhancement, pericarditis with significant pericardial effusion, loculated at the apical level, left pleural effusion.

 Image is Not Display Check It
Figure 2: Computed tomography of the skull showing a decrease in the cortico-subcortical region, hyperdense lesions are evident in the basal ganglia suggestive of calcifications at this level.

 Image is Not Display Check It

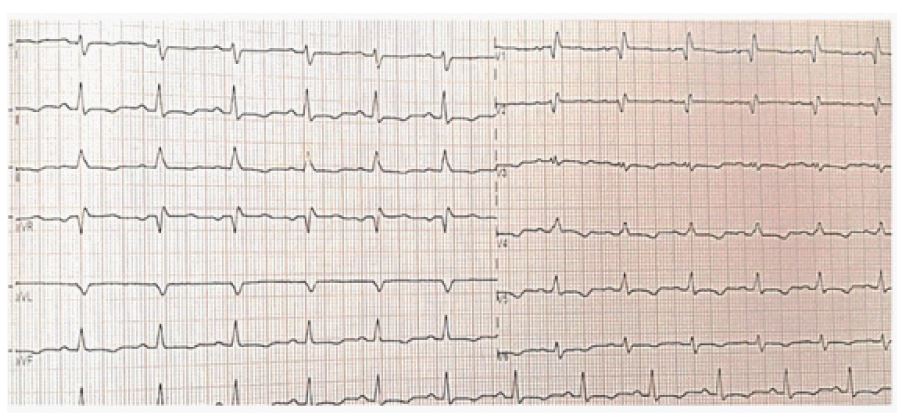

Figure 3: Electrocardiogram showing sinus rhythm with complete right bundle branch block, left atrial and right ventricular enlargement with QTc prolongation 530 ms by Bazzet.
Discussion

Hypoparathyroidism, is a rare disorder, caused by insufficient parathyroid hormone secretion that affects its major target organs: the skeleton and the kidney. The major clinical manifestations in the latter, a consequence of the loss of the calcium-conserving actions of PTH, are hypocalcemia, and low levels of 1,25-dihydroxy vitamin D. Pseudohypoparathyroidism (PHP) is an entity originated by resistance against PTH action in target tissues caused by mutations and/or epigenetic changes at the complex GNAS locus on chromosome 20q13.3 that encodes the a subunit of the stimulatory G protein [13].

PHP subtype 1a is caused by heterozygous inactivating mutations in the maternal exons that cause PTH-resistant hypocalcemia and hyperphosphatemia because paternal Gsa expression is suppressed in certain organs [14]. PHP subtype 1b is caused by heterozygous maternal deletions within GNAS or STX16, this type of PHP is clearly associated with PTH resistance in renal proximal tubules and some resistance to thyrotropin [15]. The patient we report seems to correspond to a sporadic case where epigenetics defects are explained by disruption of the re-methylation events during oocyte development [16].

The frame shift c.1119_1120insA (p.Pro374ThrfsTer603) variant in GNAS gene has not been reported previously as a pathogenic variant nor as a benign variant [17]. This novel variant creates a premature Stop codon at position 603 of the new reading frame and has an allele frequency of 0.002% in gnomAD exomes database. This variant is predicted to cause loss of normal protein function through protein truncation. Loss of protein function in c.1141 and c1117 variants have been previously reported to be disease causing [18,19].

Despite all the information available regarding molecular definitions of PHP [4,20] the report of massive pericardial and pleural effusion is rare [11,12,21] and the allegedly origin has been hypocalcemia due to idiopathic hypoparathyroidism, but the cause remains unknown. Dilated cardiomyopathy due to severe maternal vitamin D deficiency accompanied by compensatory hyperparathyroidism has been reported in infants [22]. In adults hypocalcemic cardiomyopathy is usually the result of hypoparathyroidism, with or without vitamin D deficiency [23]. Among the many endocrine causes of heart failure [24] resistance to thyrotropin [15] is rarely considered although haploinsufficiency for GNAS1 also explains the resistance to TSH as the TSH receptor is a G-protein coupled receptor [25]. The most likely cause of the severe pericardial effusion in this patient was congestive heart failure secondary to hypocalcemia cardiomyopathy possibly associated to TSH resistance [12,26]. Nevertheless, the possible implication of an abnormal Gsa consequence of the GNAS gene mutation has to be considered. Gsa polymorphisms are known to influence blood pressure variation [27,28] and pericardial effusion is the result of hemodynamic compromise [29].

References
  1. Luo M, Anderson ME. Mechanisms of altered Ca(2)(+) handling in heart failure. Circ Res. 2013; 113(6): 690-708.
  2. Parepa I, Mazilu L, Suceveanu A, Voinea C, Tica I. Hypocalcemic Cardiomyopathy - a Rare Heart Failure Etiology in Adult. Acta Endocrinol (Buchar). 2019; 5(1): 107-12.
  3. Lu D, Dong A, Zhang J, Guo X. A novel GNAS mutation in pseudohypoparathyroidism type 1a in a Chinese man presented with recurrent seizure: a case report. BMC Endocr Disord. 2021; 21(1): 12.
  4. Juppner H. Molecular Definition of Pseudohypoparathyroidism Variants. J Clin Endocrinol Metab. 2021; 106(6): 1541-52.
  5. Mantovani G, Bastepe M, Monk D, de Sanctis L, Thiele S, et al. Diagnosis and management of pseudohypoparathyroidism and related disorders: first international Consensus Statement. Nat Rev Endocrinol. 2018; 14(8): 476-500.
  6. Milioto A, Reyes M, Hanna P, Kiuchi Z, Turan S, et al. Lack of GNAS Remethylation During Oogenesis May Be a Cause of Sporadic Pseudohypoparathyroidism Type Ib. J Clin Endocrinol Metab. 2022; 107(4): e1610-e9.
  7. Richard N, Abeguile G, Coudray N, Mittre H, Gruchy N, et al. A new deletion ablating NESP55 causes loss of maternal imprint of A/B GNAS and autosomal dominant pseudohypoparathyroidism type Ib. J Clin Endocrinol Metab. 2012; 97(5): E863-7.
  8. Kozasa T, Itoh H, Tsukamoto T, Kaziro Y. Isolation and characterization of the human Gs alpha gene. Proc Natl Acad Sci U S A. 1988; 85(7): 2081-5.
  9. Iwasaki Y, Aksu C, Reyes M, Ay B, He Q, et al. The long-range interaction between two GNAS imprinting control regions delineates pseudohypoparathyroidism type 1B pathogenesis. J Clin Invest. 2023; 133(8).
  10. Del Portillo-Navarrete JH, Pizano A, Benavides J, Palacio AM, Moreno-Medina K, et al. Unveiling the causes of pericardial effusion in a contemporary case series of pericardiocentesis in Latin America. Sci Rep. 2022; 12(1): 16010.
  11. Riesenberg K, Pick N, Levy I, Borer A, Schlaeffer F. Pericardial effusion accompanying isolated hereditary hypoparathyroidism. Isr Med Assoc J. 1999; 1(3): 194-5.
  12. Yokokawa T, Sakamoto K, Mizuno H, Shimizu Y, Matsui Y, et al. A case of massive pericardial effusion associated with hypocalcemic cardiomyopathy. J Cardiol Cases. 2014; 10(2): 58-61.
  13. Weinstein LS, Liu J, Sakamoto A, Xie T, Chen M. Minireview: GNAS: normal and abnormal functions. Endocrinology. 2004; 145(12): 5459-64.
  14. Lemos MC, Thakker RV. GNAS mutations in Pseudohypoparathyroidism type 1a and related disorders. Hum Mutat. 2015; 36(1): 11-9.
  15. Mantovani G, Bondioni S, Linglart A, Maghnie M, Cisternino M, et al. Genetic analysis and evaluation of resistance to thyrotropin and growth hormone-releasing hormone in pseudohypoparathyroidism type Ib. J Clin Endocrinol Metab. 2007; 92(9): 3738-42.
  16. Liu J, Nealon JG, Weinstein LS. Distinct patterns of abnormal GNAS imprinting in familial and sporadic pseudohypoparathyroidism type IB. Hum Mol Genet. 2005; 14(1): 95-102.
  17. Linglart A, Levine MA, Juppner H. Pseudohypoparathyroidism. Endocrinol Metab Clin North Am. 2018; 47(4): 865-88.
  18. Ohata Y, Kakimoto H, Seki Y, Ishihara Y, Nakano Y, et al. Pathogenic variants of the GNAS gene introduce an abnormal amino acid sequence in the beta6 strand/alpha5 helix of Gsalpha, causing pseudohypoparathyroidism type 1A and pseudopseudohypoparathyroidism in two unrelated Japanese families. Bone Rep. 2022; 17: 101637.
  19. Rickard SJ, Wilson LC. Analysis of GNAS1 and overlapping transcripts identifies the parental origin of mutations in patients with sporadic Albright hereditary osteodystrophy and reveals a model system in which to observe the effects of splicing mutations on translated and untranslated messenger RNA. Am J Hum Genet. 2003; 72(4): 961-74.
  20. Juppner H. Pseudohypoparathyroidism: complex disease variants with unfortunate names. J Mol Endocrinol. 2024; 72(1).
  21. Khanal S, Sharma R, Budakoty S. Rare case of massive pericardial effusion secondary to primary hypoparathyroidism. Indian Heart J. 2017; 69(5): 660-1.
  22. Bansal B, Bansal M, Bajpai P, Garewal HK. Hypocalcemic cardiomyopathy-different mechanisms in adult and pediatric cases. J Clin Endocrinol Metab. 2014; 99(8): 2627-32.
  23. Jariwala PV, Sudarshan B, Aditya MS, Praveer L, Chandra KS. Hypoparathyroidism-a cause of reversible dilated cardiomyopathy. J Assoc Physicians India. 2010; 58: 500-2.
  24. Khatiwada S, Boro H, Farooqui FA, Alam S. Endocrine causes of heart failure: A clinical primer for cardiologists. Indian Heart J. 2021; 73(1): 14-21.
  25. Grasberger H, Refetoff S. Resistance to thyrotropin. Best Pract Res Clin Endocrinol Metab. 2017; 31(2): 183-94.
  26. Schmitt W, Roque D, Germano A. Massive pericardial effusion caused by hypothyroidism. Clin Case Rep. 2018; 6(4): 766-7.
  27. Jia H, Hingorani AD, Sharma P, Hopper R, Dickerson C, et al. Association of the G(s)alpha gene with essential hypertension and response to beta-blockade. Hypertension. 1999; 34(1): 8-14.
  28. Zeng W, Chu TTW, Ho CS, Lo CWS, Chan ASL, et al. Lack of Effects of Renin-Angiotensin-Aldosterone System Activity and Beta-Adrenoceptor Pathway Polymorphisms on the Response to Bisoprolol in Hypertension. Front Cardiovasc Med. 2022; 9: 842875.
  29. Lazaros G, Imazio M, Tsioufis P, Lazarou E, Vlachopoulos C, et al. Chronic Pericardial Effusion: Causes and Management. Can J Cardiol. 2023; 39(8): 1121-31.
+
